/mod/lti/view.php contains markup that overrides settings of the current pagelayout and theme which cause the page to display incorrectly depending on the display type that the user selects.

https://github.com/moodle/moodle/blob/master/mod/lti/view.php#L132-L165

Specifically:

• setting body overflow:hidden
• adding padding to the object bottom

steps to reproduce:

1. create an external tool instance with "embed (no blocks)" or "embed (with blocks)" set as the display type
2. save and display

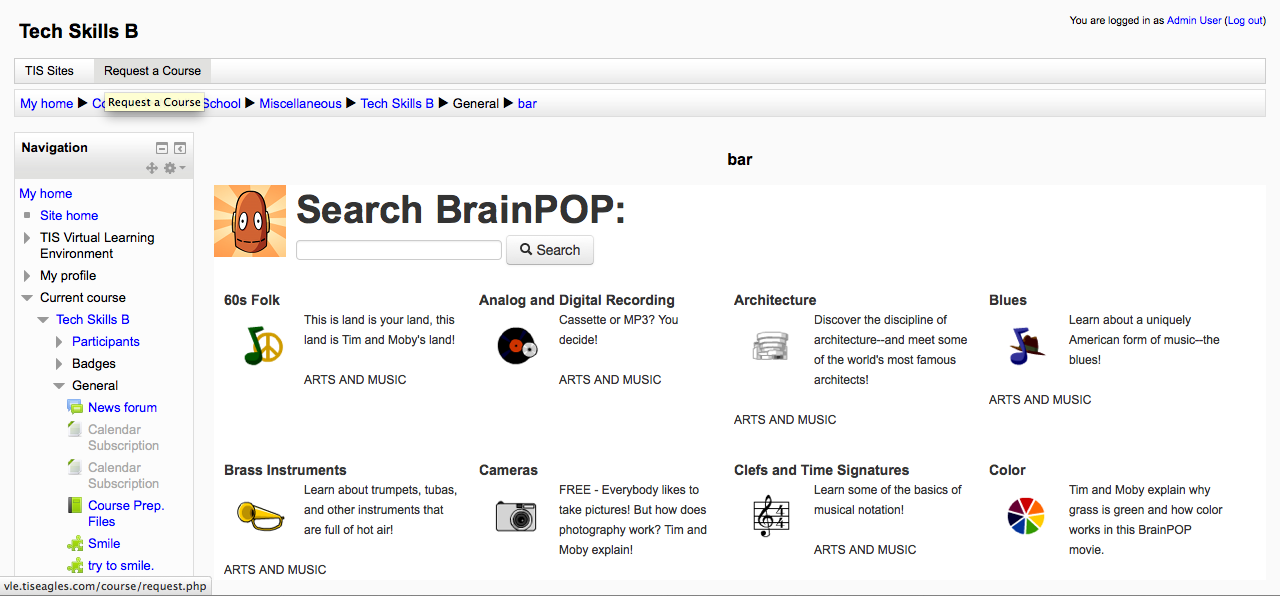

results: depending on the viewport height and the height of the header/breadcrumb of the current theme, the object frame is cut off on the bottom of the viewport (because the object is hard-coded to 600px high). In addition the blocks on the page are hidden due to the overflow value.

Solution:

There are multiple things that need to be addressed here:

• the code hides the body:overflow via javascript if it's not a pop-up, neglecting blocks
  • I believe that this overflow:hidden can be entirely removed and the pagelayout itself should handle how the page is output - just because there's no footer (site footer) doesn't mean there's nothing below (like overflowed object container)
  • If it can't be removed then the CSS should be move from javascript into styles.css making it easier for a theme to adjust
• The code adds padding below the object via JS because "the bottom of the object wasn't visible in some themes"
  • The real issue is the body overflow:hidden, not padding/borders, etc... this again can be removed
  • Again if this can't be removed it should be moved to styles.css
• The size of the object's height is calculated ever 1/4 second by a javascript function
  • This should be done by placing the object in a relative position in a container div so that the object height can be set to 100% and the container can control the height relative to the viewport or page height
